Analysing foam parameters, controlling surfactant effects
The new generation of SITA FoamTester - 20 years of experience meet innovative foam testing
With the SITA FoamTester, the Foam properties of surfactant-containing solutions can be precisely and reproducibly analysed with automatic measurement procedures.
- Fully automated foam analysis
- Reproducible foaming
- Measuring foam and liquid volume
- Analysing foam structure
- Recording drainage
- Automated self-cleaning system
| Measured Parameters | Total volume, liquid volume, bubble geometry |
| Foam Properties | Foam volume, gas volume, liquid volume in foam, max. foam volume, foaming potential, drainage half-life period, average bubble size, bubble size distribution |
| Fields of Application | Product development, raw material selection and development, product processing and application, quality and process assurance |
| Operations | Create multiple re-usable templates and precise (and) repeatable test routines for quick and simple screening of test and sample parameters |
| Measurement |
Non-contact determination of total and liquid volume High-resolution and large-area capture of the foam structure |
| Application Examples | Cosmetics, cleaning chemicals, cooling lubricants, food, paint & coatings |

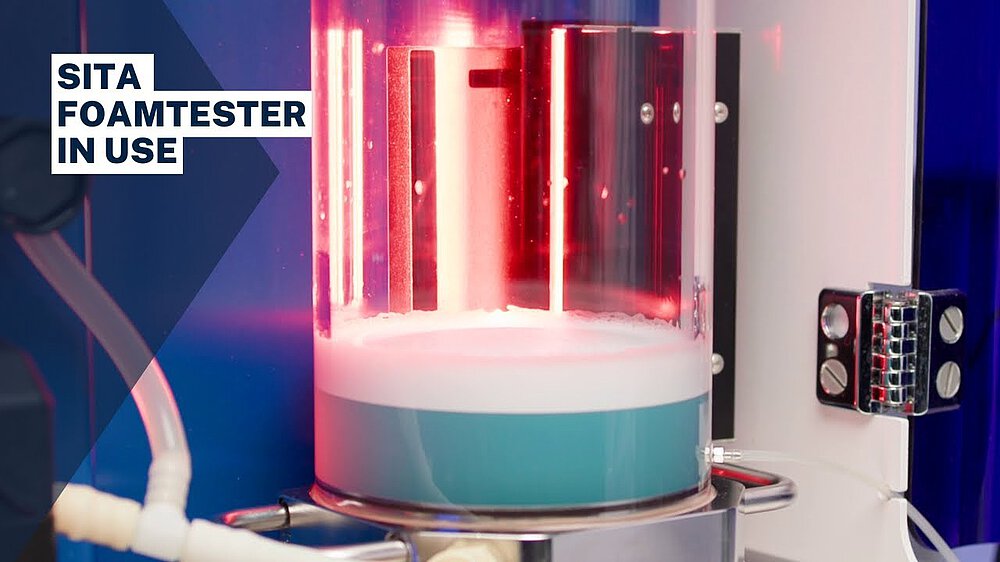

SITA foam testing is characterised by a high degree of automation and reproducibility. The SITA FoamTester is used to analyse the foam behaviour of surfactant-containing liquids in various areas and applications.
- Influence of formulation and raw materials on foam behaviour in cosmetics
- Investigations of the relationship between the resulting foam structure and user perception
- Influence of contaminations on the foaming in cleaning baths
- Studies on the efficiency and stability of defoamers in cooling lubricants
- Formulation optimization to reduce foam formation during beverage bottling
Create foam
Differentiation of various sample formulations and reproducible test sequences using an application oriented foam creation with proven SITA method
- Established SITA standardised stirring disc
- Minor influence of the vessel glass on foam formation
- Removable measuring vessel with stirring unit
- Variable stirring parameters: speed, duration, acceleration, direction, intervals
Measure foam
Recording the most important foam properties
- Volume Measurement
- Non-contact determination of total volume using structured light method
- Determination of the volume of the remaining liquid by using total reflection
- Foam Structure
- High-resolution imaging of the foam structure over wide range of foam height using total reflection
Analyse foam and understand foaming
Practical evaluation of measuring data using SITA-FoamLab software remotely from the office PC
- Full transparency of measuring progress and results by intuitive visualisation
- Complex data is presented in significant numerical values (Foam Characteristics)
- Analysis of foam decay and drainage
- Analysis of bubble sizes and shapes in foam Structure
- Easy comparison and visualisation of multiple measuring and reference results
- Easy export of data and results for documentation
| Foam creation | ||
|---|---|---|
| Recommended sample volume | (200 ... 500) ml | |
| Usable measuring vessel volume | 1,500 ml (incl. foam); dimensions: height 180 mm, diameter 110 mm | |
| Capacity of sample reservoir | 2,000 ml | |
| Sample tempering of measuring vessel and sample reservoir | (0 ... 60) °C using a optional thermostat | |
| Stirring speed | (0 ... 2,000) U/min (bidirectional) | |
| Adjustable stirring programs | speed, duration, direction, acceleration | |
| Analysis of foam volume (foam creation and decay) | ||
|---|---|---|
| Measurement values | total volume, liquid volume | |
| Evaluated parameters | max. foam volume, foam potential, foaming behaviour, drainage half time | |
| Measuring range total volume | (0 ... 1,500) ml; resolution 1 ml | |
| Measuring range liquid volume | (0 ... 500) ml; resolution 1 ml | |
| Analysis of foam structure | ||
|---|---|---|
| Parameters | number of bubbles, bubble size distribution, average bubble diameter, roundness | |
| Evaluation area | height 130 mm, width 50 mm | |
| Resolution | 3,200 dpi | |
The package includes the PC software SITA-FoamLab, which allows intuitive creation and evaluation of custom experiments.
- Use of templates of stored measurement procedures
- Display of all measured values and parameters
- Comparison and display of various measurement results and reference results
- Integrated calculation of essential foam characteristics
- Customizable layout of graphs for individual documentation
Integration of various external laboratory devices
- Burette (fluid dispensing device)
- Thermostat
- Expert Version: Consists of the SITA FoamTester and the PC Software SITA-FoamLab Expert (foam structure analysis)
- Basic Version: Consists of the SITA FoamTester and the PC Software SITA-FoamLab Basic
- Both versions include a sample storage vessel, measuring vessel as well as all necessary hoses for connection to the water supply and drain.
