The hand-held measuring device SITA CleanoSpector is used for Cleanliness inspection of parts to ensure product quality and follow-up processes such as adhesive bonding, coating, welding, hardening and bonding.
Unwanted Filmic contamination such as oils, greases, cooling lubricants and release agents are detected by measuring the Fluorescence intensity.
The easy to use SITA CleanoSpector is suitable for quality assurance directly in the manufacturing process.
Features
- Mobile and robust measuring device for flexible application at the process and in the laboratory
- Intuitive operation and fast measuring at the push of a button
- Additional sensor trigger button for optimal handling
- Direct measurement with spacer or contact-free using stand and target pointer
- Individual measurement profiles for repeated measuring tasks
- Limit value monitoring with extended statistical characteristic values
| Quantity | Fluorescence intensity in RFU |
| Fields of application |
Cleanliness inspection before gluing, painting, coating, welding, hardening, bonding … Coating thickness inspection for corrosion protection oils, primer application before gluing |
| Use | Detection of oil, grease, cooling lubricant, parting agents, … on parts and assemblies made of metal, ceramics and glass (only partially suitable for plastics) |
| Measurement | Contact free, non-destructive, in-line capable, thickness sensitive |
| Measurement monitoring | SITA fluorescence standards (standard scope of delivery and option) |
| Industry | Automotive, machine construction, mechanical engineering, medical technology, electrical engineering, surface technology, aerospace … |
For over 15 years, the SITA CleanoSpector is used successfully and worldwide in a wide range of applications and industries:
- Cleanliness inspection of metal parts after processing with production aids (monitoring, optimisation and control of cleaning processes)
- Inspection of functional surfaces after selective cleaning (laser cleaning, ultra-fine plasma cleaning, CO2 snow blasting and others)
- Inspection for residues of release agents on aluminium die-cast parts before adhesive bonding
- Monitoring the cleanliness of gear parts before laser welding
- Inspection for filmic contamination on parts in medical or vacuum technology
- Detecting flux residues and contamination through sealing compound in electronics production
- Surface inspection on electrical contacts after stripping of isolation material
- Inspection for sufficient layer thickness when applying corrosion protection oils or when applying a primer
The measuring method uses the characteristic of organic substances to fluoresce. UV light is focused onto the surface. The contamination fluoresces. The intensity of the Fluorescence increases with the layer thickness of the contamination. The intensity is measured in RFU (Relative Fluorescence Unit) in relation to SITA fluorescence standards.
The lower the measured value in RFU, the cleaner the surface.
| Measurand fluorescence intensity | ||
|---|---|---|
| Measurement range | 0...2.000 RFU (Relative Fluorescence Unit) | |
| Measurement deviation | max 0.5% of the measurement range | |
| Resolution | 0,1 RFU | |
| Sensor parameters | ||
|---|---|---|
| Excitation | 365 nm, max. 150 mW | |
| Detection* | 460 nm | |
| Measuring point* | D=1 mm | |
| Measuring distance* | 4,7 mm | |
| * standard values | ||
| Power supply | ||
|---|---|---|
| Li-Ion-battery | 3.6 V/1,950 mAh, min. 8 h operating hours | |
| Mains adapter / USB | 100...240 V / 5 V | |
| Power consumption | max. 2,5 W | |
| General data | ||
|---|---|---|
| Measuring profiles | > 1,000 | |
| Number of sample points | max. 250 per measurementt | |
| Memory | > 1.5 mio measuring values | |
| User level | Administrator, operator | |
| USB | Data transfer and device control | |
| Display | LCD, illuminated | |
| Dimensions (HxWxD) | Hand-held device: 129x82x48 mm Sensor head: 95x50x30 mm | |
| Weight (device) | 530 g | |

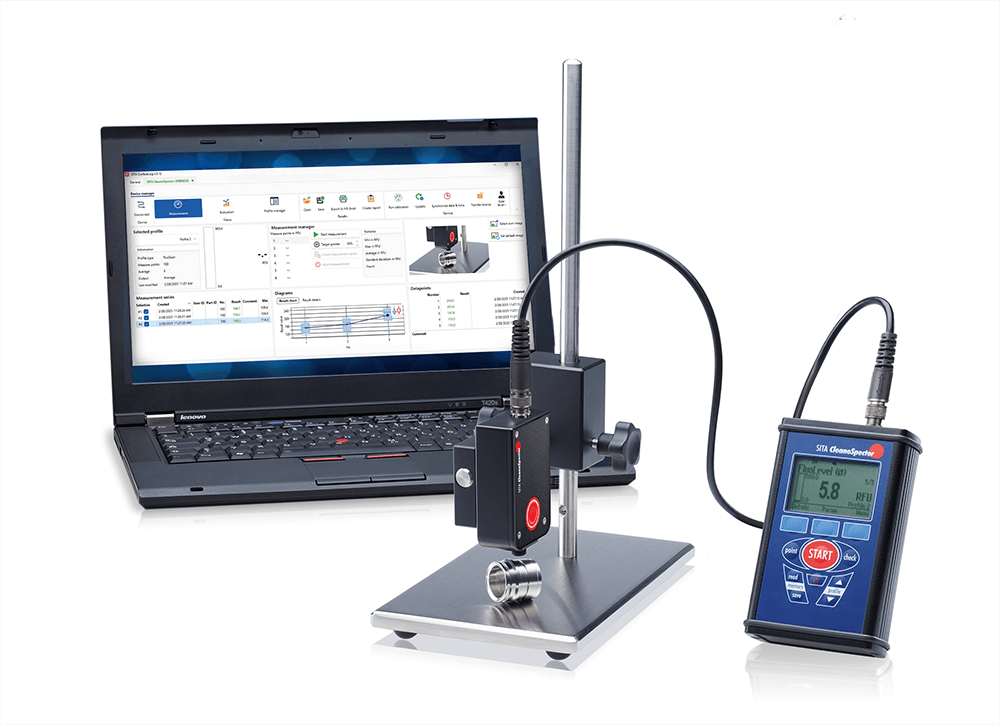

The optional Software SITA SurfaceLog enables convenient access to all functions and data of the SITA CleanoSpector with the PC:
- Simple generation, administration and import or export of measuring profiles
- Control of measurements via PC
- Link guided measurements to drawings/images of parts or to test points
- Detailed data visualisation, data filtering, statistical evaluations as well as graphical display with point diagrams and box plots
- Convenient report function for documenting measurement results
- Database-compatible Excel and Q-DAS export
- Supported device testing and adjustment as well as device firmware updates
- Additional user-friendly functions such as extended comment function, various language localisations and management of user level

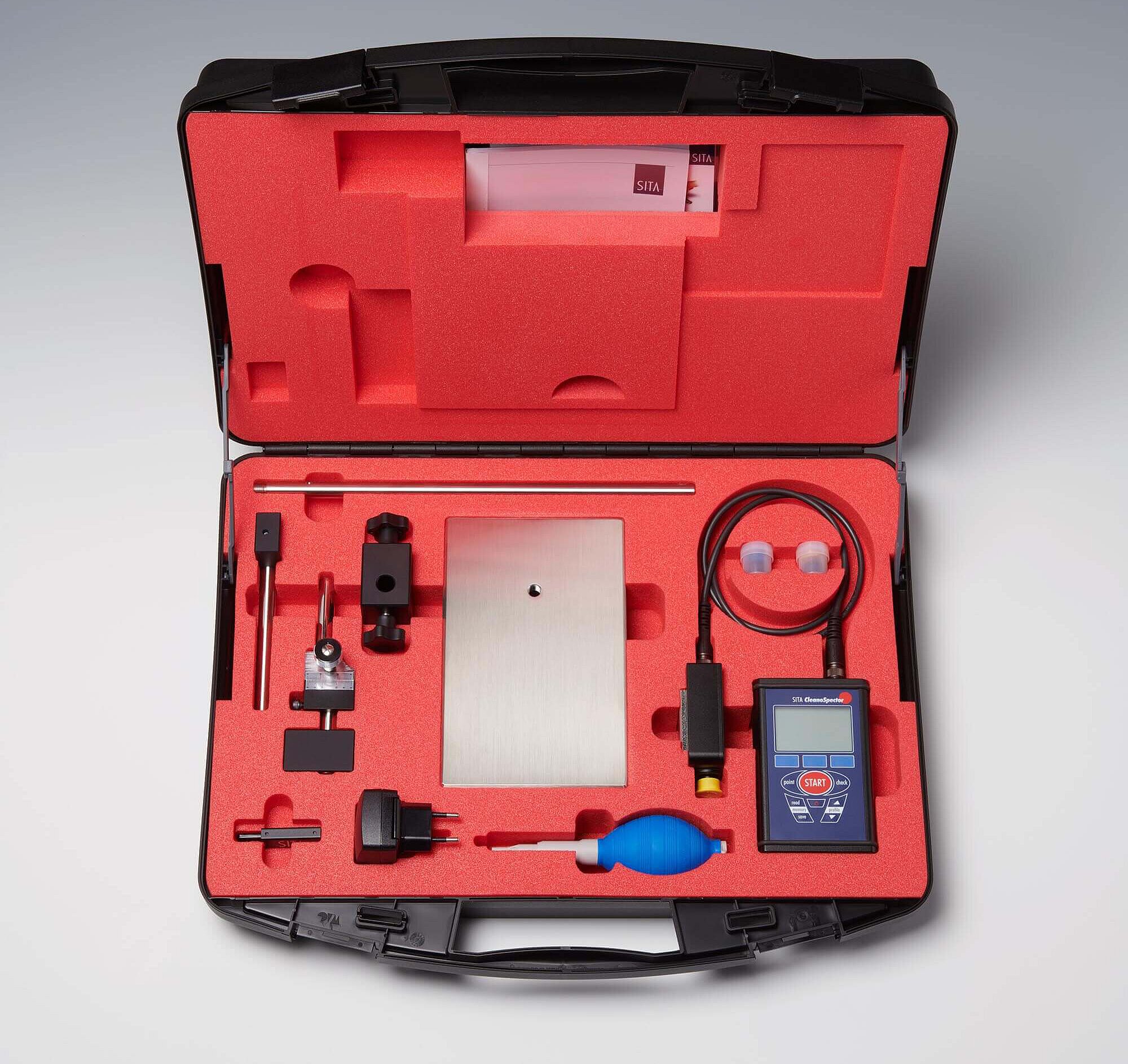

- Basic device
- Sensor
- Stand with rod and plate
- Device holder
- Magnetic holder & optional magnetic holder for fine adjustment
- Robust measuring device case
- Mains adapter and USB cable
- Working standard N0 & optional working standard N1
- 2 spacer
- USB stick with software (optional)
- Bellow
- Operating instructions
- Quick start guide
- Calibration certificate
